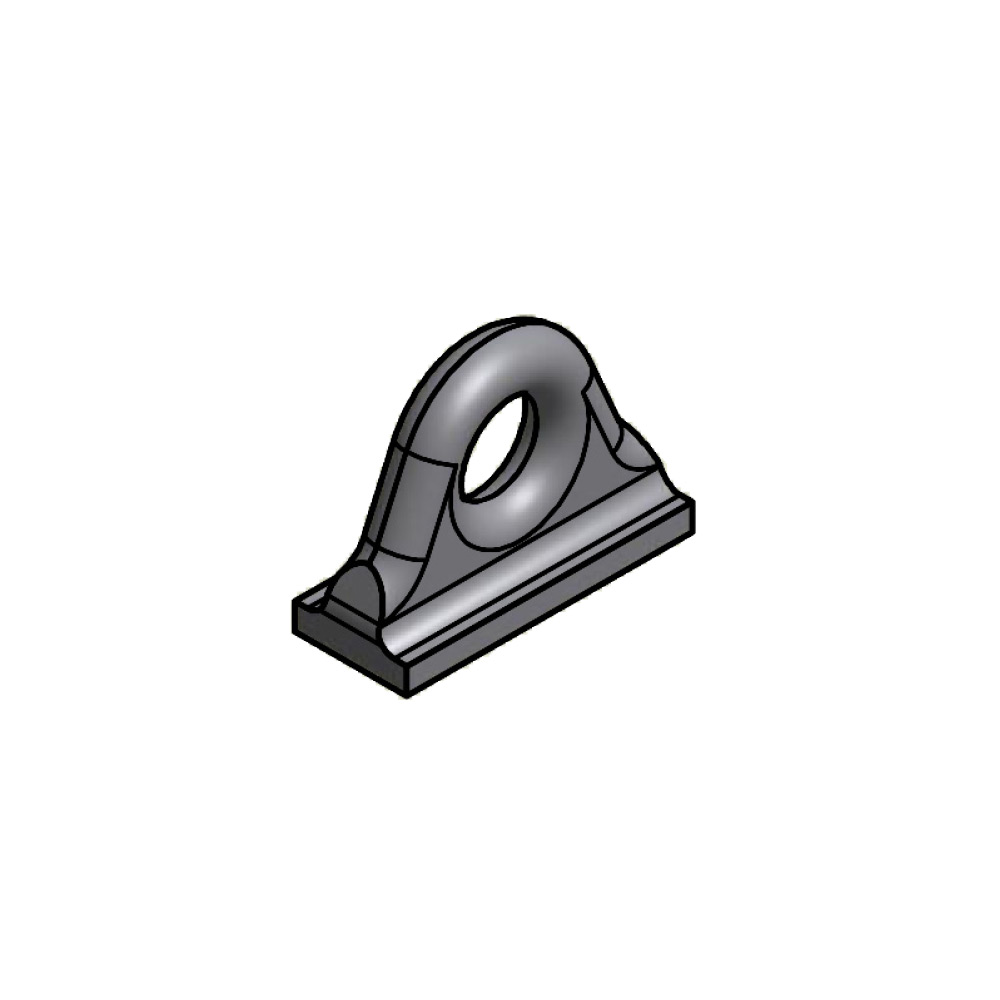

Towing Eye Type Zotek-50

Product number: 8004930

50x110x30-165x65x15 mm

Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability. Cross references, designation of type by vehicle manufacturers or competitors are for guidance only. Check that the part is correct for the application before fitting.

The ring dimensions of the towing ring complying with ISO 20019. The range of application extends to the use on agricultural or forestry trailers.

Product advantages

Made of forged steel

The scope of delivery includes 1x towing eye type Zotek-50 without type plate.

content not found ! check ident(444-ba_7.08.030_zotek-50) !

When installing the towing eyelet in a support device, the relevant regulations (e.g. UVV vehicles) and the attachment guidelines of the vehicle manufacturer must be observed! The towing eyelet must be type-approved together with the mounting device. Please refer to the requirements of §27 StVZO regarding the data in the vehicle documents with regard to the permissible trailer load. In the case of installation within the scope of the German Road Traffic Licensing Regulations (StVZO), the installation must be approved by a technical inspection authority. The towing eyelet must only be installed by an authorized specialist workshop. Test report on weld seam strength TK10016_2.

All components are designed specifically for the device and performance and it is not allowed to exchange for components other than those prescribed by Walterscheid. Damaged or missing parts can only replace with original Walterscheid parts and retrofit them in accordance with regulations and after consultation with Walterscheid.
The assignment, assembly and use of this model requires a detailed preliminary examination by qualified personnel. It is imperative to check the existing facilities and all of the machinery and equipment for their suitability for attachment. In particular, the characteristic values (e.g. vertical and pulling loads or torques) and the geometries (e.g. dimensions, screw hole patterns, free spaces) must be observed. Depending on the existing equipment of the machine, this can result in the use or purchase of additional components. The content of operating instructions must be observed.

Towing eye ZOTEK-50 similar to DIN 9678 (ISO 5692-1).

Type of connection: standard towing eye D=50 mm | pickup-hitchring | non turnfromle
Model: Zotek-50
Vertical load (daN): 3000
D-Value (kN): 75
Norm DIN/ISO: ISO 20019
AP Code: N-Y-OP-GE-NH-0
A (mm): 65
B (mm): 123
C (mm): 165
D (mm): 30
E (mm): 50
W (mm): 35
Y (mm): 23
AP-Code: N-Y-OP-GE-NH-0
X (mm): 80
Data sheet: 7.08.030
Z (mm): 22
Colour: Without color

Towing Eye Type Zotek-50
