Walterscheid® Cut out clutch EK 62/2SL - 1194075
EK62/2SL RD35H8 P10 TK125 GM8-8 170TEIL.4
Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability. Cross references, designation of type by vehicle manufacturers or competitors are for guidance only. Check that the part is correct for the application before fitting.
Cut out clutch
In cut out clutches, spring-loaded balls engage axially in a cup washer. After the coupling torque is exceeded, the balls are pressed against springs by a vector force decomposition and then release the frictional connection. Above the engagement speed of approx. 60 to 80 rpm, the clutch runs through load-free and only when the engagement speed falls below the aforementioned speed does the clutch engage by the balls falling back into their initial position. The clutches are designed to be switchable for both directions of rotation.
Product advantages
Drive is interrupted in the event of overload
No loss of time due to restoring the torque
Switches on automatically at low speed
In cut out clutches, spring-loaded balls engage axially in a cup washer. After the coupling torque is exceeded, the balls are pressed against springs by a vector force decomposition and then release the frictional connection. Above the engagement speed of approx. 60 to 80 rpm, the clutch runs through load-free and only when the engagement speed falls below the aforementioned speed does the clutch engage by the balls falling back into their initial position. The clutches are designed to be switchable for both directions of rotation.
Product advantages
Drive is interrupted in the event of overload
No loss of time due to restoring the torque
Switches on automatically at low speed
The scope of delivery includes a complete cut out clutch EK62/2SL.
All components are designed specifically for the device and performance and it is not allowed to exchange for components other than those prescribed by Walterscheid. Damaged or missing parts can only replace with original Walterscheid parts and retrofit them in accordance with regulations and after consultation with Walterscheid.
The assignment, assembly and use of this model requires a detailed preliminary examination by qualified personnel. It is imperative to check the existing facilities and all of the machinery and equipment for their suitability for attachment. In particular, the characteristic values (e.g. vertical and pulling loads or torques) and the geometries (e.g. dimensions, screw hole patterns, free spaces) must be observed. Depending on the existing equipment of the machine, this can result in the use or purchase of additional components. The content of operating instructions must be observed.
The assignment, assembly and use of this model requires a detailed preliminary examination by qualified personnel. It is imperative to check the existing facilities and all of the machinery and equipment for their suitability for attachment. In particular, the characteristic values (e.g. vertical and pulling loads or torques) and the geometries (e.g. dimensions, screw hole patterns, free spaces) must be observed. Depending on the existing equipment of the machine, this can result in the use or purchase of additional components. The content of operating instructions must be observed.
Cut out clutches K62 every 500 operating hours or 1x per season, only if a grease nipple is present, with max. 20 strokes.
- Type
- EK62/2SL
- Torque of clutch in daNm
- 170
- Connection profile hub
- RD35H8
- Länge
- 148
- Holes/No of threads
- GM8-8
- MD-Tol.-Klasse Abw.%
- STANDARD
- MD in daNm
- 170.00
- Connection PR hub
- RD35H8
- Keyway width
- 10JS9
- SNR.-Housing/E-Coupl
- 196807
- Distance from drilling end
- 0
- Torque tolerance class and dimension in %
- STANDARD
- SNR-Housing/E-Coupl
- 196806
- Surface/Paint
- LACK.Yellow
- Surface/Paint
- LACK.GELB
- SNR-Gehäuse
- 196806
- Pitch circle diameter
- 125
- Ø Teilkreis
- 125.00
- Length (mm)
- 148

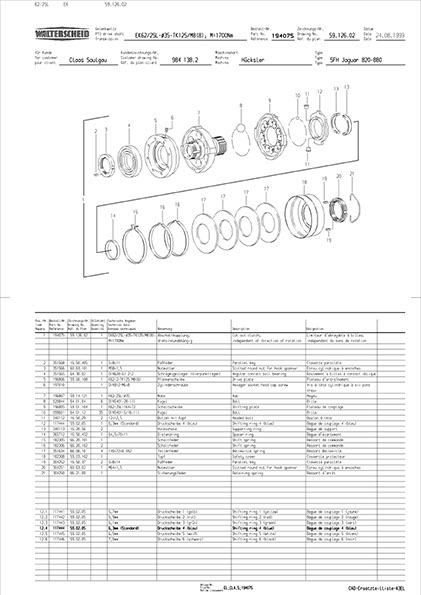

- Drawing
- 59.126.02
