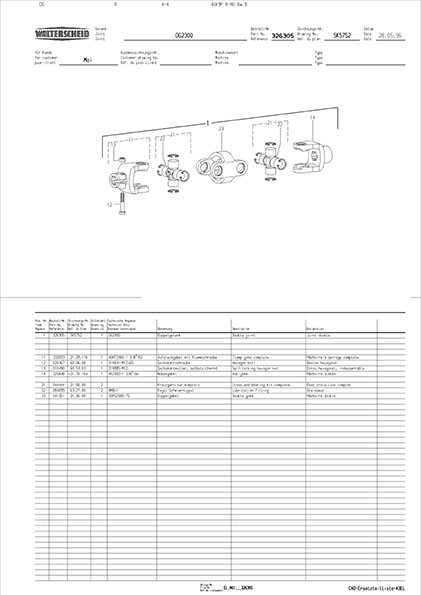

Walterscheid® Double joint DG 2300 - 1326305
DG 2300 2129116 2170104+ 75 6A6A
Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability. Cross references, designation of type by vehicle manufacturers or competitors are for guidance only. Check that the part is correct for the application before fitting.
Original Walterscheid spare part
Product advantages
The Walterscheid diamond has been a guarantee of quality and safety for decades.
You can rely on their good reputation. It meets your requirements.
Product advantages
The Walterscheid diamond has been a guarantee of quality and safety for decades.
You can rely on their good reputation. It meets your requirements.
The scope of delivery includes 1x Double joint series W, E (Ecoline) and P (PowerDrive).
All components are designed specifically for the device and performance and it is not allowed to exchange for components other than those prescribed by Walterscheid. Damaged or missing parts can only replace with original Walterscheid parts and retrofit them in accordance with regulations and after consultation with Walterscheid.
The assignment, assembly and use of this model requires a detailed preliminary examination by qualified personnel. It is imperative to check the existing facilities and all of the machinery and equipment for their suitability for attachment. In particular, the characteristic values (e.g. vertical and pulling loads or torques) and the geometries (e.g. dimensions, screw hole patterns, free spaces) must be observed. Depending on the existing equipment of the machine, this can result in the use or purchase of additional components. The content of operating instructions must be observed.
The assignment, assembly and use of this model requires a detailed preliminary examination by qualified personnel. It is imperative to check the existing facilities and all of the machinery and equipment for their suitability for attachment. In particular, the characteristic values (e.g. vertical and pulling loads or torques) and the geometries (e.g. dimensions, screw hole patterns, free spaces) must be observed. Depending on the existing equipment of the machine, this can result in the use or purchase of additional components. The content of operating instructions must be observed.
- Type
- DG
- Size
- 2300
- Torque of clutch in daNm
- 0
- Form Anschluss 1
- KP1 3/8
- Abbreviation connection 2
- NG
- Article no. Connection 2
- 325848
- Length double fork
- 75
- Form Anschluss 2
- KP1 3/8
- Nipple shape/position
- 6A 6A
- Abbreviation connection 1
- AGKF
- Article no. Connection 1
- 332693
- Surface/Paint
- LACK.Yellow
- Short fork
- KURZ
- Cross seal
- STANDARD
