Walterscheid® Flange shaft TK 138 - 1107402

Product number: 1107402

FL-ZAPFEN D160 TK138 B12,5-6 1 3/8-6V R-NUT L116

Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability. Cross references, designation of type by vehicle manufacturers or competitors are for guidance only. Check that the part is correct for the application before fitting.

Original Walterscheid flange shaft

Product advantages

The Walterscheid diamond has been a guarantee of quality and safety for decades.
You can rely on their good reputation. It meets your requirements.

The scope of delivery includes 1x Flange shaft (profil 1 3/8" (6), TK 138).

Type: FLANSCHZAPFEN
Size: 160
Manufacturer: Walterscheid

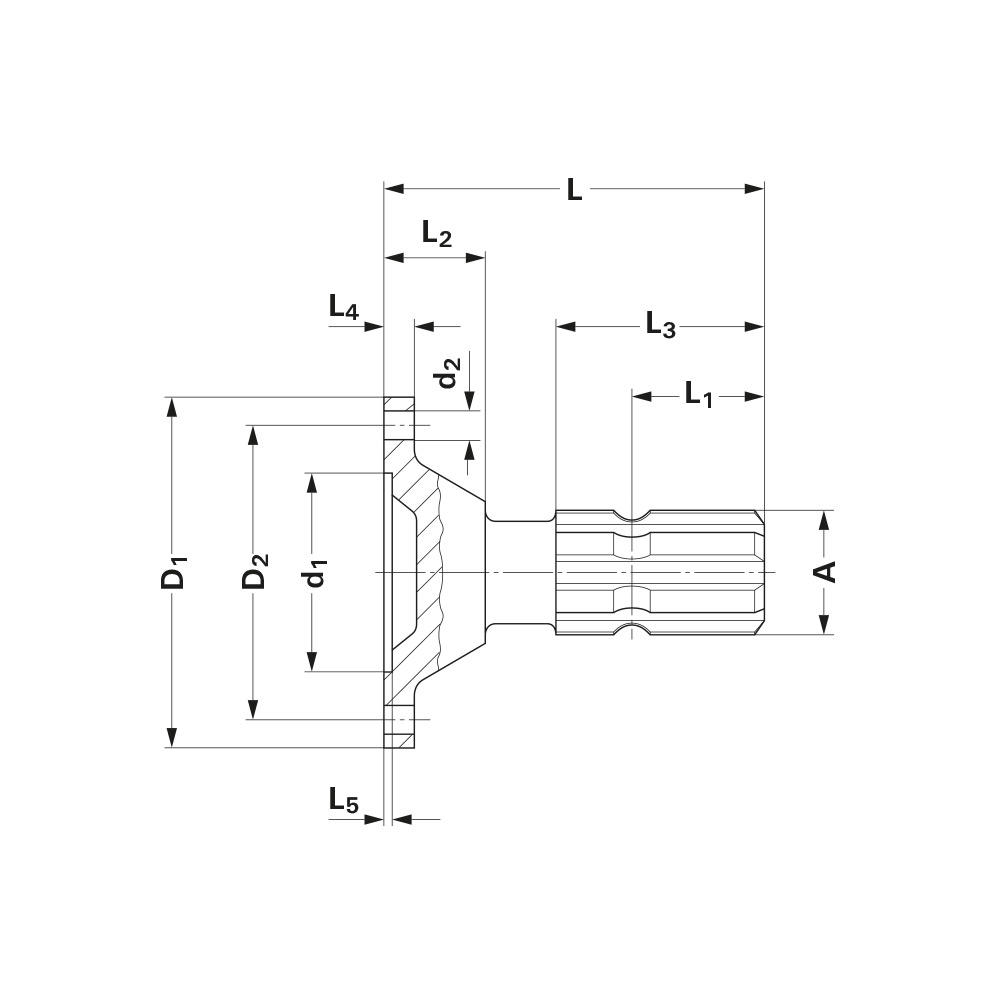

d1 (mm): 98
D2 (mm): 138
A-Profile: 1 ⅜“ (6)
L (mm): 116
L1 (mm): 38
L2 (mm): 36
L3 (mm): 60
L4 (mm): 15
L5 (mm): 2
D1 (mm): 160
d2 (mm): 12,5
n - Drills: 6
Drawing: 16.09.121
