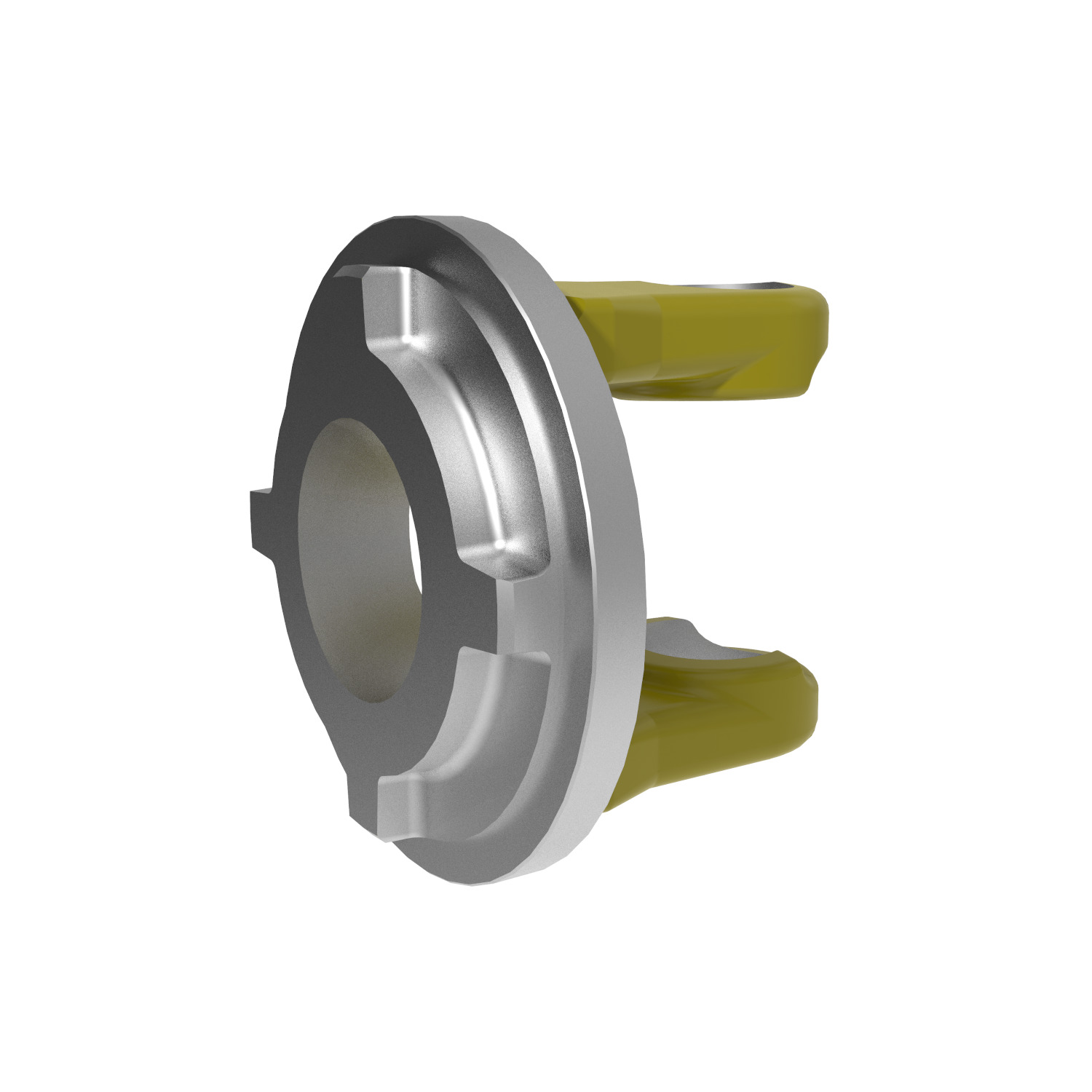

Walterscheid® Flange yoke FG FM 2400 - 1139055

Product number: 1139055

FG-FM 2400 D114,98 L69 B54

Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability. Cross references, designation of type by vehicle manufacturers or competitors are for guidance only. Check that the part is correct for the application before fitting.

Original Walterscheid spare part

Product advantages

The Walterscheid diamond has been a guarantee of quality and safety for decades.
You can rely on their good reputation. It meets your requirements.

The scope of delivery includes 1x Flange yoke.

Type: FG-FM
Type: FG-FM
Size: 2400
Manufacturer: Walterscheid
d (mm): 32
D (mm): 115
Flanschdicke o.Zentr.: 10.00
Bohrung Flansch: 54.00
Zentr.Länge L2: 12.00
SNR Rohling/Gabel: 3580
Pos. IFM/L: 2
Länge Augenb.-Ende: 69.00
Ø Teilkreis: 0.00
Werkstoff: C45, UNI C40
Pos. IFM/R: 2
Ø Flansch: 114.98
Drawing: 35.80.15+

Walterscheid® Flange yoke FG FM 2400 - 1139055
