Walterscheid® Flange yoke FG P 480 - 1137805

Product number: 1137805

FG P480 D160 TK138 B12-6 AZ98H9 L78G-LAGER

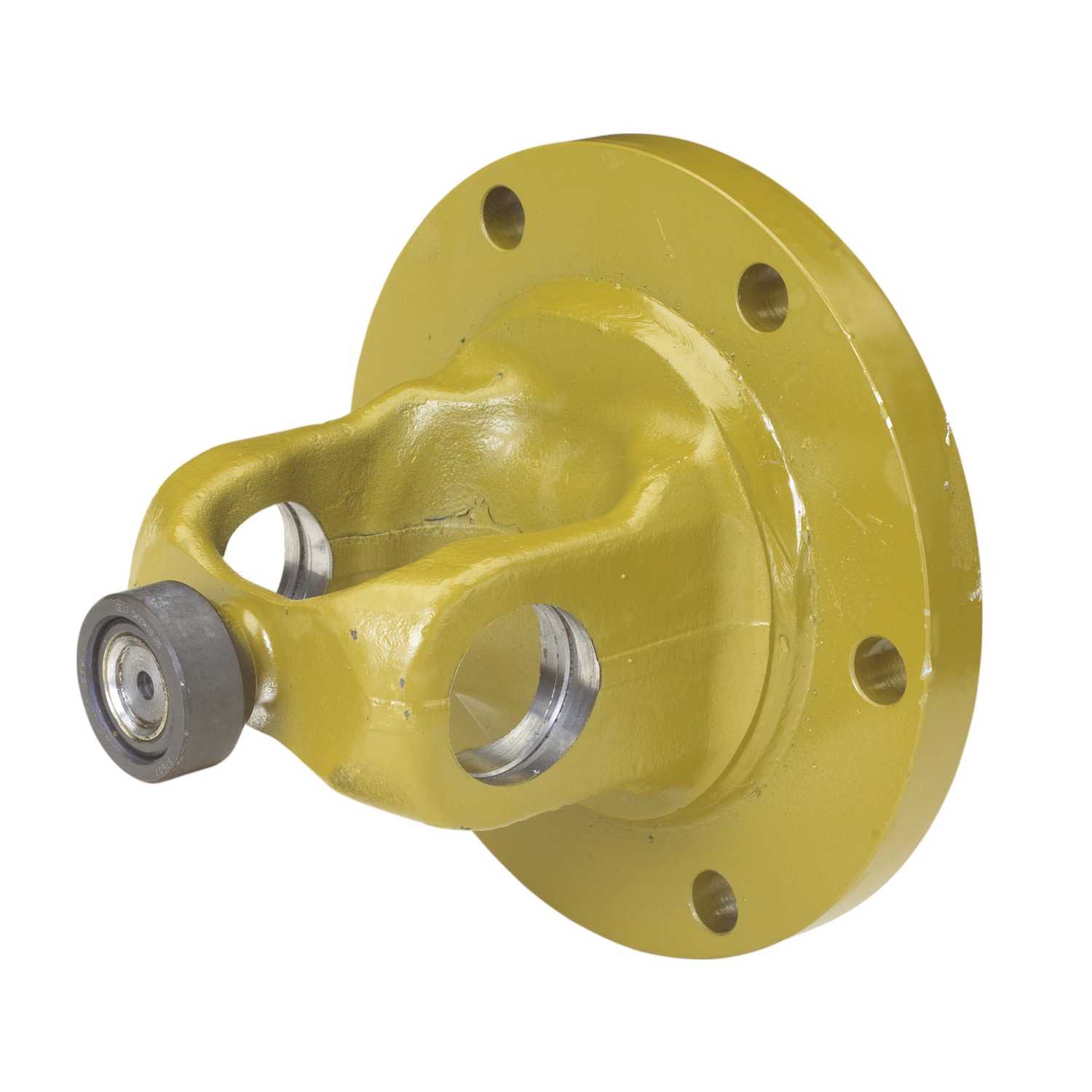

Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability. Cross references, designation of type by vehicle manufacturers or competitors are for guidance only. Check that the part is correct for the application before fitting.

Original Walterscheid spare part

Product advantages

The Walterscheid diamond has been a guarantee of quality and safety for decades.
You can rely on their good reputation. It meets your requirements.

The scope of delivery includes 1x Wide angle flange yoke series P (PowerDrive).

Type: FG
Type: FG
Size: P480
B (mm): 86
Manufacturer: Walterscheid
d (mm): 32
D2 (mm): 138
L (mm): 76
D1 (mm): 160
D3 (mm): 98
Centering. AZ./IZ.: AZ98H9
Holes/No of threads: 6
n: 6
SNR Rohling/Gabel: 137804
Ø Flansch: 160.00
Ø Bohr./Gew.: B12
Ø Teilkreis: 138.00
d2 (mm): 12,2
Bohrung Flansch: 0.00
Länge Augenb.-Ende: 78.00
Werkstoff: SIEHE STL
Flanschdicke o.Zentr.: 15.00
Zentr.Länge L2: 2.00
Drawing: 35.19.310M
