Walterscheid® Friction clutch EK 97/4 - 1105065
EK97/4 KNP1 3/4-6 CC TK138 MD300-IIGM12-12 JZ98H7
Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability. Cross references, designation of type by vehicle manufacturers or competitors are for guidance only. Check that the part is correct for the application before fitting.

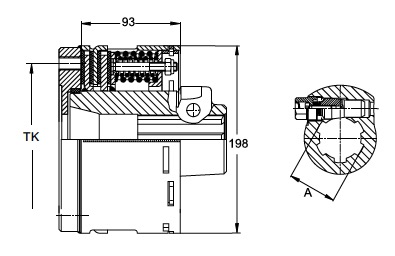

Friction clutch with spring package and clamping cone lock.
Friction clutches count among the torque-maintaining clutches and limit short-term torque peaks. Power transmission in the driveline is not interrupted. The clutch torque is dependent on the spring forces, the mean friction radius, the coefficient of friction and thenumber of friction linings. Friction clutches are particularly suitable for limiting loads during start-up processes, e.g. the acceleration of large masses. If the driveline is blocked, the entire energy to be transmitted is converted into heat. Overheating of the friction clutch can result in temporary reduction of the clutch torque or destroy the friction lining. The thermal loading capacity of friction clutches depends on the design type, the friction linings and the installation conditions. We exclusively use friction disks with a high thermal loading capacity.
Product advantages
Protects the drive from high starting torques
Protects against torque peaks
Friction clutches count among the torque-maintaining clutches and limit short-term torque peaks. Power transmission in the driveline is not interrupted. The clutch torque is dependent on the spring forces, the mean friction radius, the coefficient of friction and thenumber of friction linings. Friction clutches are particularly suitable for limiting loads during start-up processes, e.g. the acceleration of large masses. If the driveline is blocked, the entire energy to be transmitted is converted into heat. Overheating of the friction clutch can result in temporary reduction of the clutch torque or destroy the friction lining. The thermal loading capacity of friction clutches depends on the design type, the friction linings and the installation conditions. We exclusively use friction disks with a high thermal loading capacity.
Product advantages
Protects the drive from high starting torques
Protects against torque peaks
The scope of delivery includes a complete friction clutch EK97/4.
- Type
- EK97/4
- Torque of clutch in daNm
- 300
- Set position of clutch
- II
- Einstelllage
- II
- Centering AZ./JZ.
- JZ98H7
- SNR-Housing/E-Coupl
- 112182
- Torque tolerance class and dimension in %
- STANDARD
- MD-Tol.-Klasse Abw.%
- STANDARD
- Ø Teilkreis
- 138.00
- Locking/drilling/thread
- CC
- SNR-Gehäuse
- 112182
- SNR.-Housing/E-Coupl
- 102357
- Surface/Paint
- LACK.Yellow
- Holes/No of threads
- GM12-12
- Pitch circle diameter
- 138
- Connection profile hub
- KNP1 3/4-6
- MD in daNm
- 300.00
- Distance from drilling end
- 30

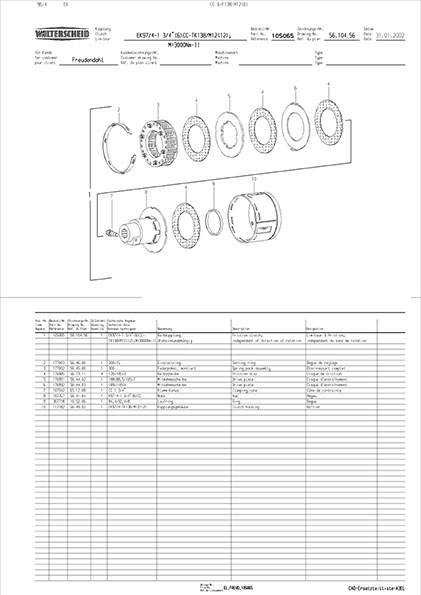

- Drawing
- 56.104.56
