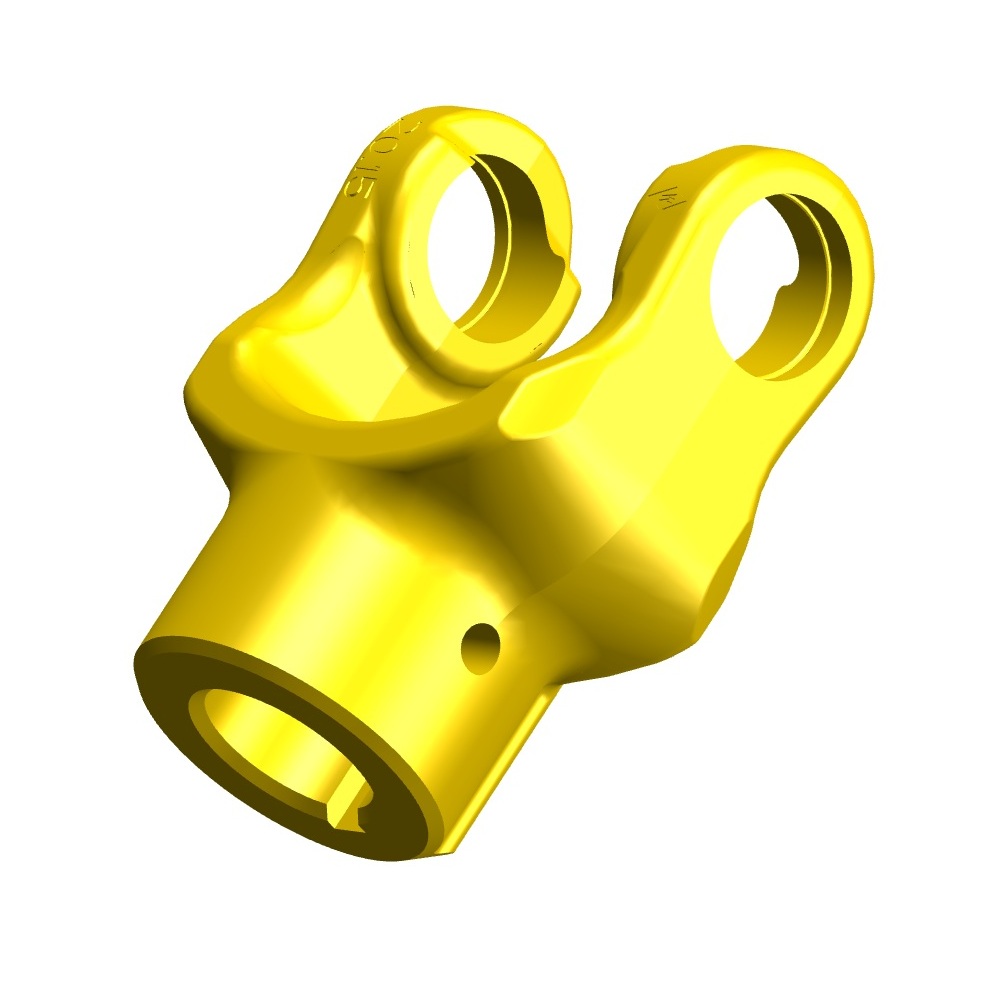

Walterscheid® Hub yoke NG 2200 - 1041086

Product number: 1041086

NG 2200 RD20H8 P6 GM8 L80

Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability. Cross references, designation of type by vehicle manufacturers or competitors are for guidance only. Check that the part is correct for the application before fitting.

Original Walterscheid spare part

Product advantages

The Walterscheid diamond has been a guarantee of quality and safety for decades.
You can rely on their good reputation. It meets your requirements.

The scope of delivery includes 1x Hub yoke series W and E (Ecoline) with keyway.

Type: NG
Type: NG
Size: 2200
B (mm): 70
Manufacturer: Walterscheid
d (mm): 24
A-Profile: 20H8
L (mm): 80
A (mm): 20
Werkstoff: EN-GJS-500-7
Profile length: 40.00
Ø ü.Nut: 22.80
N (mm): 6
Abstand Bohr.-Ende 2: 0.00
Oberfläche/Behandlung: UNBEHANDELT
Rohling-/Gabel-SNR: 2015
Arretier./Bohr./Gew. 1: GM8
Anschluss-PR: RD20H8
Länge Augenb.-Ende: 80.00
Abstand Bohr.-Ende 1: 20.00
Keyway width: 6JS9
Thread: M8
Drawing: 20.15.15

Walterscheid® Hub yoke NG 2200 - 1041086
