Original Walterscheid spare part
Product advantages
The Walterscheid diamond has been a guarantee of quality and safety for decades.
You can rely on their good reputation. It meets your requirements.

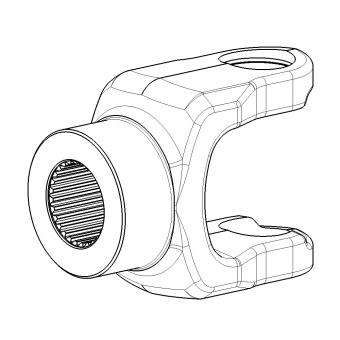

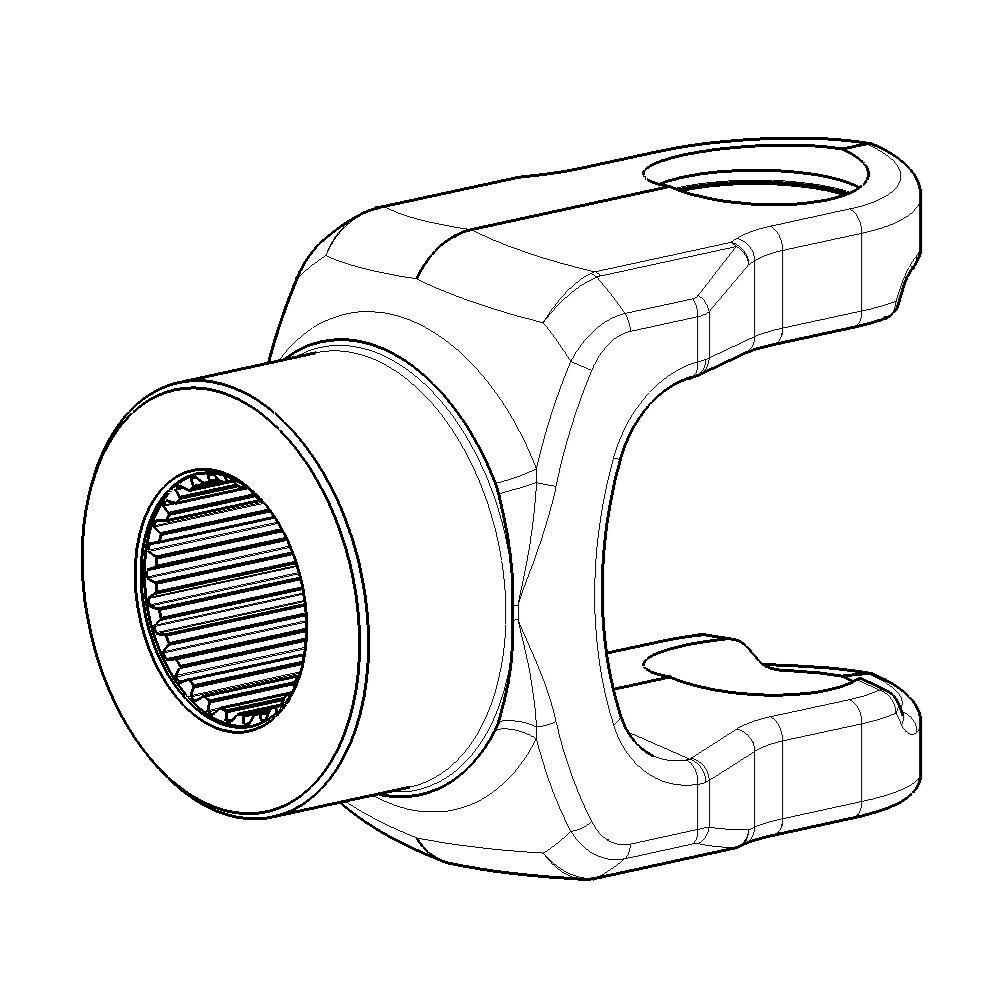

The scope of delivery includes 1x Hub yoke series W and P (PowerDrive).
All components are designed specifically for the device and performance and it is not allowed to exchange for components other than those prescribed by Walterscheid. Damaged or missing parts can only replace with original Walterscheid parts and retrofit them in accordance with regulations and after consultation with Walterscheid.
The assignment, assembly and use of this model requires a detailed preliminary examination by qualified personnel. It is imperative to check the existing facilities and all of the machinery and equipment for their suitability for attachment. In particular, the characteristic values (e.g. vertical and pulling loads or torques) and the geometries (e.g. dimensions, screw hole patterns, free spaces) must be observed. Depending on the existing equipment of the machine, this can result in the use or purchase of additional components. The content of operating instructions must be observed.
- Type
- NG
- Type
- NG
- Size
- P800
- B (mm)
- 53
- Manufacturer
- Walterscheid
- d (mm)
- 53
- A-Profile
- 60x2(28)
- L (mm)
- 165
- A (mm)
- 60x2(28)
- Abstand Bohr.-Ende 2
- 0.00
- Profile length
- 59.50
- Arretier./Bohr./Gew. 1
- F.ZS
- Abstand Bohr.-Ende 1
- 0.00
- Designation
- Scheibe 17x60x6
- Norm-PR
- WN125.30
- Anschluss-PR
- ZNP60X2-28
- Ø ü.Nut
- 0.00
- Oberfläche/Behandlung
- UNBEHANDELT
- Werkstoff
- SIEHE STL
- Länge Augenb.-Ende
- 165.00
- Rohling-/Gabel-SNR
- 156758

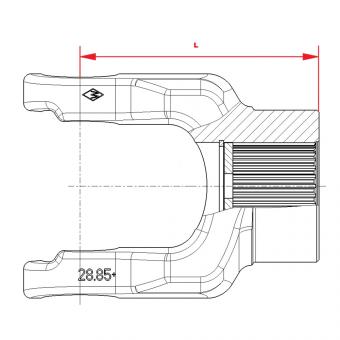

- Drawing
- 28.15.106+
