Walterscheid® Key type cut out clutch EK66/10B - 1149073
EK66/10B ZNP1 3/8-21 MD78TOL LA.SW
Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability. Cross references, designation of type by vehicle manufacturers or competitors are for guidance only. Check that the part is correct for the application before fitting.
Key type cut out clutch
Key type cut out clutches belong to the group clutches with automatic reengagement function. In the key type cut out clutch, spring-loaded locking keys radially engage special grooves in the housing. When the clutch torque is exceeded, the locking keys are pressed into a pair of spring-loaded shift rings as a result of vectorial force resolution and lock with them. Above the engagement speed of approx. 120 to 260 rpm, the clutch runs through load-free and only when the engagement speed falls below the above-mentioned speed does the clutch engage by the locking elements slipping back into their initial position. The clutches only operate in one direction.
Product advantages
Drive is interrupted in the event of overload
No loss of time due to restoring the torque
Switches on automatically at low speed
Key type cut out clutches belong to the group clutches with automatic reengagement function. In the key type cut out clutch, spring-loaded locking keys radially engage special grooves in the housing. When the clutch torque is exceeded, the locking keys are pressed into a pair of spring-loaded shift rings as a result of vectorial force resolution and lock with them. Above the engagement speed of approx. 120 to 260 rpm, the clutch runs through load-free and only when the engagement speed falls below the above-mentioned speed does the clutch engage by the locking elements slipping back into their initial position. The clutches only operate in one direction.
Product advantages
Drive is interrupted in the event of overload
No loss of time due to restoring the torque
Switches on automatically at low speed
The scope of delivery includes a complete key type cut out clutch EK66/10B.
- Type
- EK66/10B
- Torque of clutch in daNm
- 78
- Connection profile hub
- ZNP1 3/8-21
- Connection PR hub
- ZNP1 3/8-21
- Länge
- 135
- MD-Tol.-Klasse Abw.%
- C +15
- Ø Teilkreis
- 0.00
- SNR-Housing/E-Coupl
- 125469
- SNR.-Housing/E-Coupl
- 135181+135182
- SNR-Gehäuse
- 125469
- Length (mm)
- 135
- Pitch circle diameter
- 0
- Surface/Paint
- LACK.Black
- Surface/Paint
- LACK.SCHWARZ
- Torque tolerance class and dimension in %
- C +15
- Distance from drilling end
- 0
- MD in daNm
- 78.00

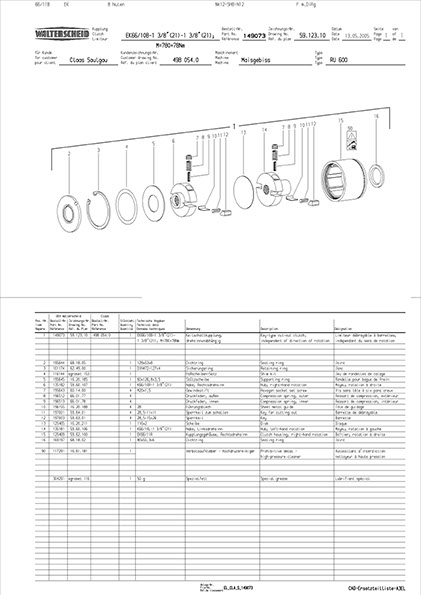

- Drawing
- 59.123.10
