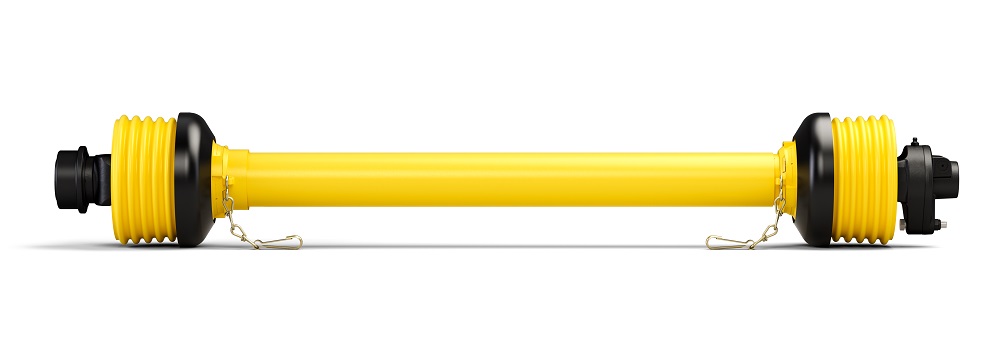

Standard drive shaft with connection fork and overload clutch
Product advantages
The W series PTO drive shaft offers tried-and-tested Walterscheid technology and is perfectly designed to suit all application areas. The excellent benefits of this Walterscheid PTO drive shaft is a long service life, ease of use, and great safety properties. For decades, Walterscheid has been a guarantee of the highest quality. The W series are optimally dimensioned for drivetrain tasks, from simple to complex ones. It impresses users with its robust design and high reliability for daily use. Another advantage: All of the components in the PTO drive shaft W series can be replaced really easily to increase ease of use or if spare parts are needed.
The scope of delivery includes a complete drive shaft size W2500 with connection fork (profile 1 3/8" (6)), shear bolt clutch KB61/20, guard, retaining chain(s), operating and assembly instructions incl. declaration of conformity.
- Type
- W
- Size
- 2500
- Shaft length (Lz)
- 1010
- Item no. attachment WH-A
- 163917
- Item no. attachment WH-I
- 362428
- Torque of clutch in daNm
- 333
- Rotation speed max. RPM
- 540 UPM
- Form attachment WH-A
- KP1 3/4
- Form attachment WH-I
- KP1 3/8
- Protective colour
- Yellow
- Nipple form / position I/A
- LB LB
- KZ Anschl.-WH-I
- ASG
- Schutzrohrlänge-I
- 760.00
- KZ Anschl.-WH-A
- K-ST
- Nipple shape/position
- LB LB
- Kuppl./Freilauf
- KB61/20
- Cone type WH-I
- RP7
- Cone Type WH-A
- RP7
- PR-Länge-A
- 845.00
- PR-Bef.
- AA
- Attachment type of profile
- AA
- Drehzahl max.
- 540 UPM
- SNR cone WH-I
- 199125
- Inner profile length
- 860
- Chain WH-A
- K
- SNR Anschl.-WH-A
- 163917
- PR-A
- S5
- Form Anschl.-WH-A
- KP1 3/4
- MD in daNm
- 333.00
- Form Anschl.-WH-I
- KP1 3/8
- Chain WH-I
- K
- Length of guard tube (inner)
- 760
- Length of guard tube (outer)
- 770
- PR-Länge-I
- 860.00
- W-Länge
- 1010.00
- Schutzrohrlänge-A
- 770.00
- SNR cone WH-A
- 199125
- SNR Anschl.-WH-I
- 362428
- PR-I
- S4
- Outer profile length
- 845
- Cross seal
- STANDARD
- Clutch / One-way type
- KB61/20
- Abbreviation attachment WH-A
- K-ST
- Abbreviation attachment WH-I
- ASG
- Profile tube - outer type
- S5
- Profile tube - inner type
- S4
- Guard type
- SD25
