Walterscheid® PTO Driveshaft with one-sided wide angle joint WWE 2480 - 1139335
WWE 2480 SDF25/1SW 1660 K64/22R+IFM/R195TOL 3583830 5911043 1BGA/2AG
Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability. Cross references, designation of type by vehicle manufacturers or competitors are for guidance only. Check that the part is correct for the application before fitting.

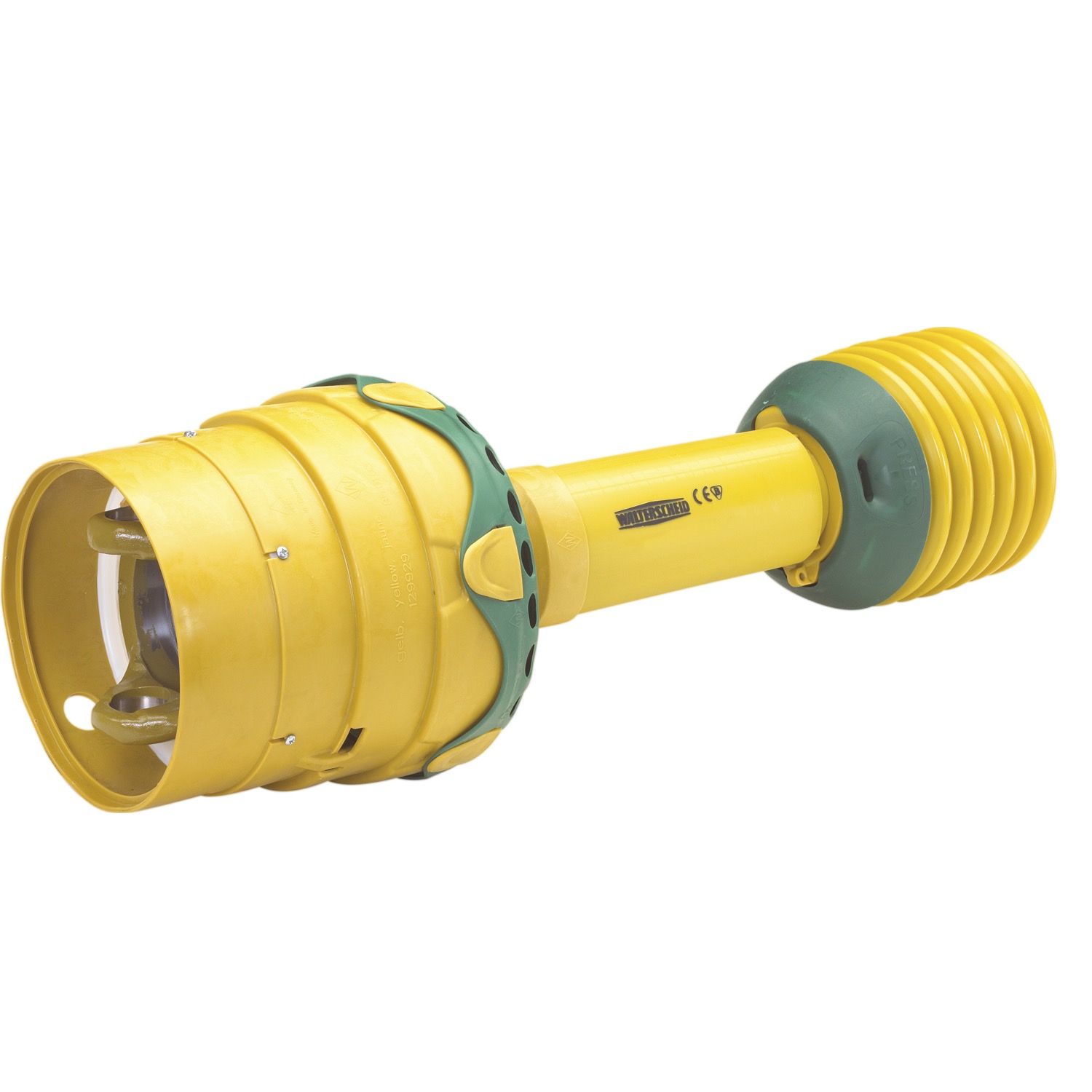

Standard drive shaft with connecting fork, overload clutches and wide-angle joint on one side
Product advantages
The W series PTO drive shaft offers tried-and-tested Walterscheid technology and is perfectly designed to suit all application areas. The excellent benefits of this Walterscheid PTO drive shaft is a long service life, ease of use, and great safety properties. For decades, Walterscheid has been a guarantee of the highest quality. The W series are optimally dimensioned for drivetrain tasks, from simple to complex ones. It impresses users with its robust design and high reliability for daily use. Another advantage: All of the components in the PTO drive shaft W series can be replaced really easily to increase ease of use or if spare parts are needed.
Product advantages
The W series PTO drive shaft offers tried-and-tested Walterscheid technology and is perfectly designed to suit all application areas. The excellent benefits of this Walterscheid PTO drive shaft is a long service life, ease of use, and great safety properties. For decades, Walterscheid has been a guarantee of the highest quality. The W series are optimally dimensioned for drivetrain tasks, from simple to complex ones. It impresses users with its robust design and high reliability for daily use. Another advantage: All of the components in the PTO drive shaft W series can be replaced really easily to increase ease of use or if spare parts are needed.
The scope of delivery includes a complete drive shaft size WWE2480 with connection fork (profile 1 3/8" (6)), cam type cut out clutch K64/22R, rotary clearance clutch IFM/R 2400, guard, retaining chain(s), operating and assembly instructions incl. declaration of conformity.
- Type
- WWE
- Size
- 2480
- Shaft length (Lz)
- 1660
- Item no. attachment WH-A
- 694085
- Item no. attachment WH-I
- 135299
- Torque of clutch in daNm
- 195
- Rotation speed max. RPM
- 540 UPM
- Form attachment WH-A
- KP1 3/8
- Form attachment WH-I
- KP1 3/8
- Nipple shape/position
- LL LB
- Cone Type WH-A
- RP6
- PR-Länge-I
- 1400.00
- PR-Länge-A
- 1380.00
- Protective colour
- Black
- MD in daNm
- 195.00
- KZ Anschl.-WH-I
- ASGE
- Schutzrohrlänge-A
- 1285.00
- PR-A
- 2AG
- Schutzrohrlänge-I
- 1300.00
- Chain WH-I
- K
- Chain
- K
- Kuppl./Freilauf
- K64/22R+IFM/R
- Cone type WH-I
- WW80
- PR-Bef.
- AA
- PR-I
- 1BGA
- Drehzahl max.
- 540 UPM
- SNR cone WH-I
- 129948
- KZ Anschl.-WH-A
- K-CC
- W-Länge
- 1660.00
- Form Anschl.-WH-I
- KP1 3/8
- Inner profile length
- 1400
- MD-Tol.-Klasse Abw.%
- 9 +10
- Chain WH-A
- K
- SNR Anschl.-WH-I
- 135299
- SNR cone WH-A
- 125140
- SNR Anschl.-WH-A
- 694085
- Outer profile length
- 1380
- Form Anschl.-WH-A
- KP1 3/8
- Length of guard tube (inner)
- 1300
- Length of guard tube (outer)
- 1285
- Cross seal
- STANDARD
- Clutch / One-way type
- IFM/R+K64/22R
- Abbreviation attachment WH-I
- K-CC
- Profile tube - outer type
- 2AG
- Profile tube - inner type
- 1BGA
- Guard type
- SDF25/1
