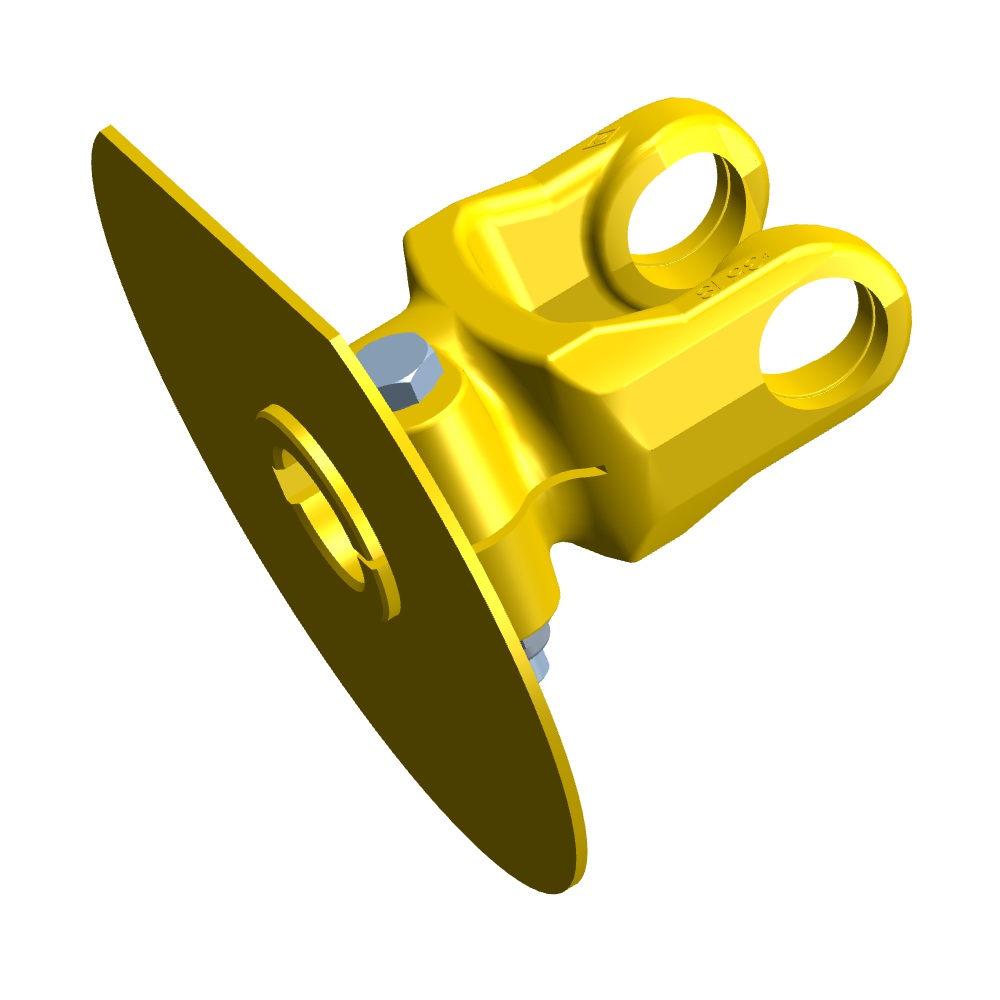

Walterscheid® Quick-disconnect yoke AGKF 2400 - 1122599

Product number: 1122599

AGKF 2400 RD35H8 P10 M12X85 L112M.SCHEIBE

Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability. Cross references, designation of type by vehicle manufacturers or competitors are for guidance only. Check that the part is correct for the application before fitting.

Original Walterscheid spare part

Product advantages

The Walterscheid diamond has been a guarantee of quality and safety for decades.
You can rely on their good reputation. It meets your requirements.

The scope of delivery includes 1x Connecting yoke for series W, E (Ecoline) and P (PowerDrive) with interfering clamp.

Type: AGKF
Type: AGKF
Size: 2400
Manufacturer: Walterscheid
Werkstoff: SIEHE STL
Abstand Bohr.-Mitte: 21.50
Länge Augenb.-Ende: 112.00
Anschluss-PR: RD35H8
Rohling-/Gabel-SNR: 123120
Profile length: 61.50
Keyway width: 10JS9
Arretierung/Bohrung: M12X85
Ø ü.Nut: 38.30
Distance from drilling end: 24
Drawing: 35.18.148+
