Inner safety guard half for standard wide-angle drive shaft size WWE2270 | WWE2370 | WWZ2270 | WWZ2370

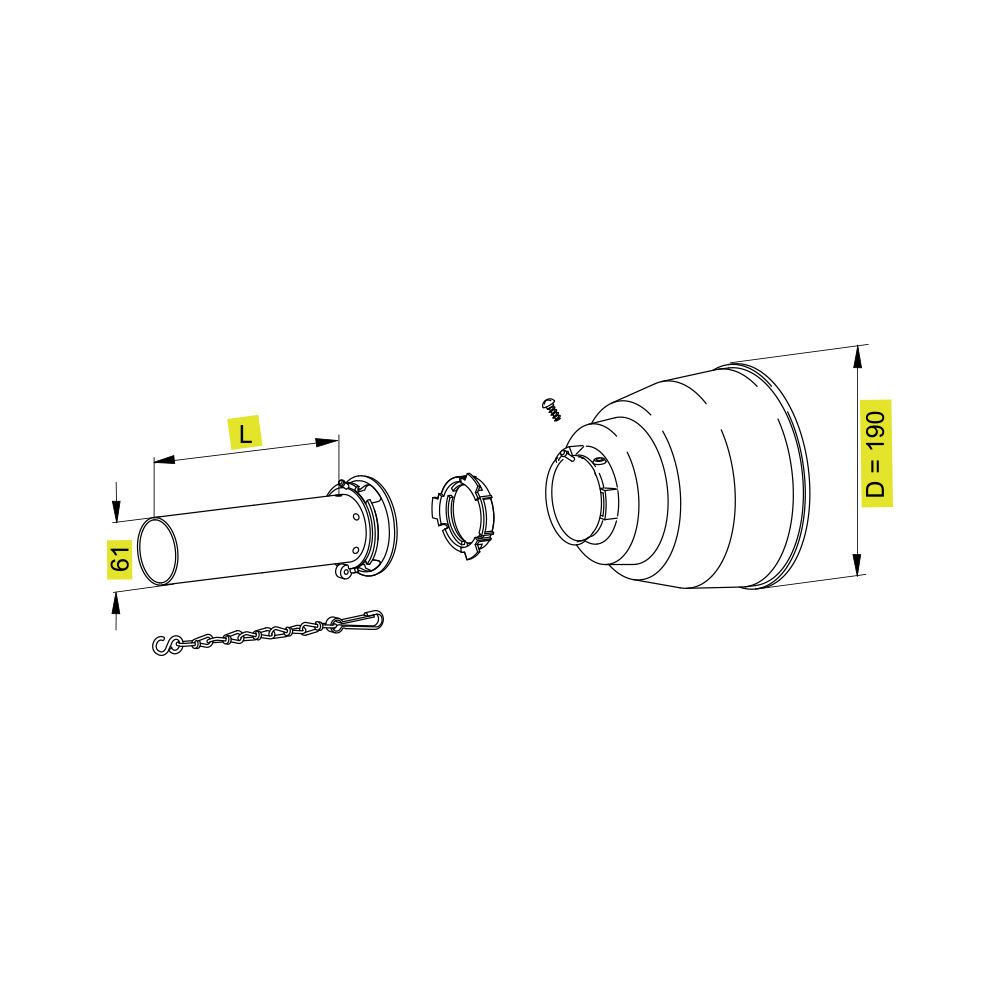

The scope of delivery includes a complete Walterscheid protective half consisting of 1x protective tube half, 1x protective funnel, 1x sliding ring, 1x screw for protective funnel and 1x retaining chain.
All components are designed specifically for the device and performance and it is not allowed to exchange for components other than those prescribed by Walterscheid. Damaged or missing parts can only replace with original Walterscheid parts and retrofit them in accordance with regulations and after consultation with Walterscheid.
The assignment, assembly and use of this model requires a detailed preliminary examination by qualified personnel. It is imperative to check the existing facilities and all of the machinery and equipment for their suitability for attachment. In particular, the characteristic values (e.g. vertical and pulling loads or torques) and the geometries (e.g. dimensions, screw hole patterns, free spaces) must be observed. Depending on the existing equipment of the machine, this can result in the use or purchase of additional components. The content of operating instructions must be observed.
- Type
- SCH
- Size
- 15
- Manufacturer
- Walterscheid
- WW-Typ
- WW2270/2370
- Protective colour
- GELB
- Rohrlänge
- 1000.00
- Trichtertyp
- WW70
- J/A
- J
- Chain
- K400
- KPL/TKPL
- KPL
- Trichter-SNR
- 365247
- Schutzgröße
- 15
- Drawing
- 85.101
- Guard type
- SCH
