Walterscheid® Safety guard half inner STFH 25Z - 1113797

Product number: 1113797

STFH25Z J1500 852562 WW

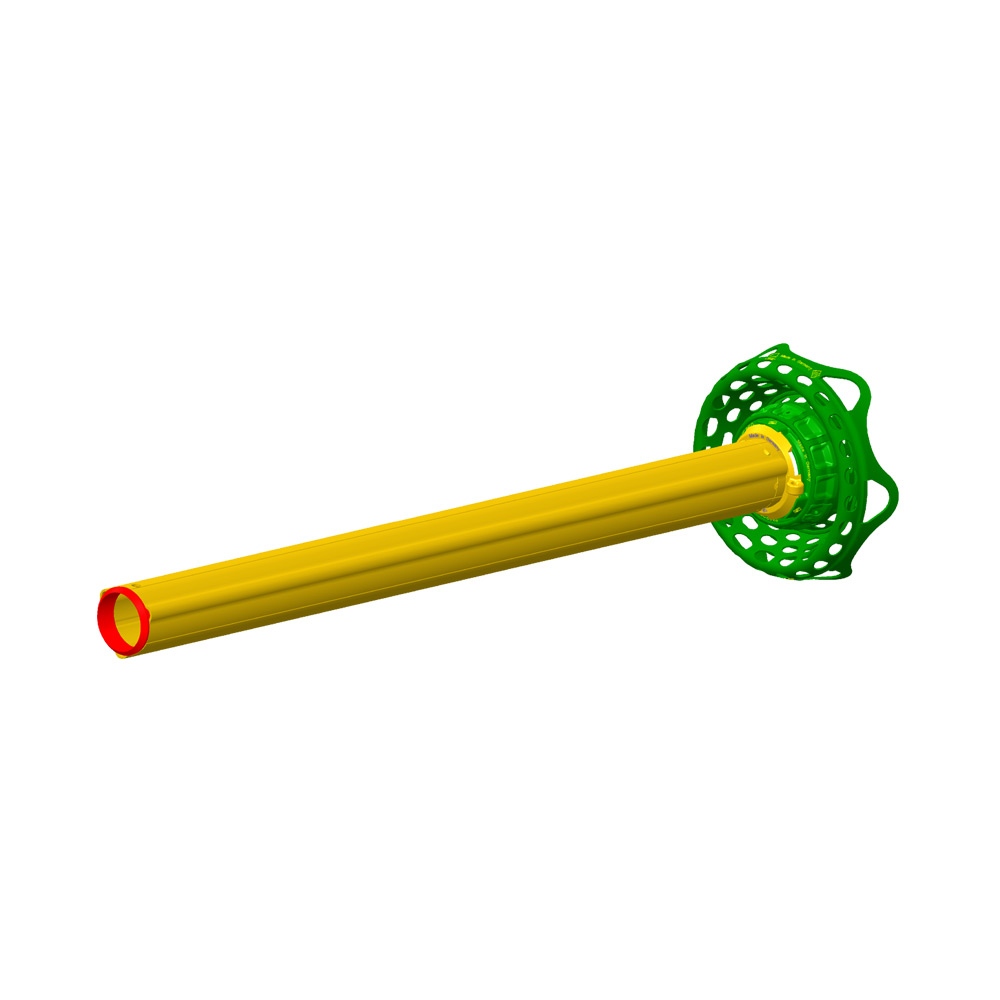

Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability. Cross references, designation of type by vehicle manufacturers or competitors are for guidance only. Check that the part is correct for the application before fitting.

Inner safety guard half for standard wide-angle drive shaft size WWE2380 | WWE2480 | WWE2580 | WWZ2380 | WWZ2480 | WWZ2580

Product advantages

The advantage of profiled guards is that the two halves of the guard are rotationally fixed. As a result, at least one retaining chain on the PTO drive shaft guard (preferably on the tractor side) is no longer needed. The risk of guard defects due to incorrect chain attachment is reduced. In combination with a full guard on the implement side, it is even possible to dispense with both retaining chains. This is a real plus when it comes to safety, since a defective guard cannot provide adequate protection against the rotating PTO drive shaft.

The scope of delivery includes a complete Walterscheid protective half consisting of 1x protective tube half, 1x protective funnel, 1x sliding ring and 3x screw for protective funnel.

Size: STFH25Z
L [mm]: 1500
Trichtertyp: FLEX
KPL/TKPL: KPL
D [mm]: 240
WW-Typ: WW2380/2480/2580
Protective colour: GELB
Schutzgröße: 25Z
J/A: J
Trichter-SNR: 134847
Rohrlänge: 1500.00
Guard type: STFH
