Walterscheid® Safety guard half outer SCH 25 - 1106717

Product number: 1106717

SCH25 A1000 8525120 WW2580

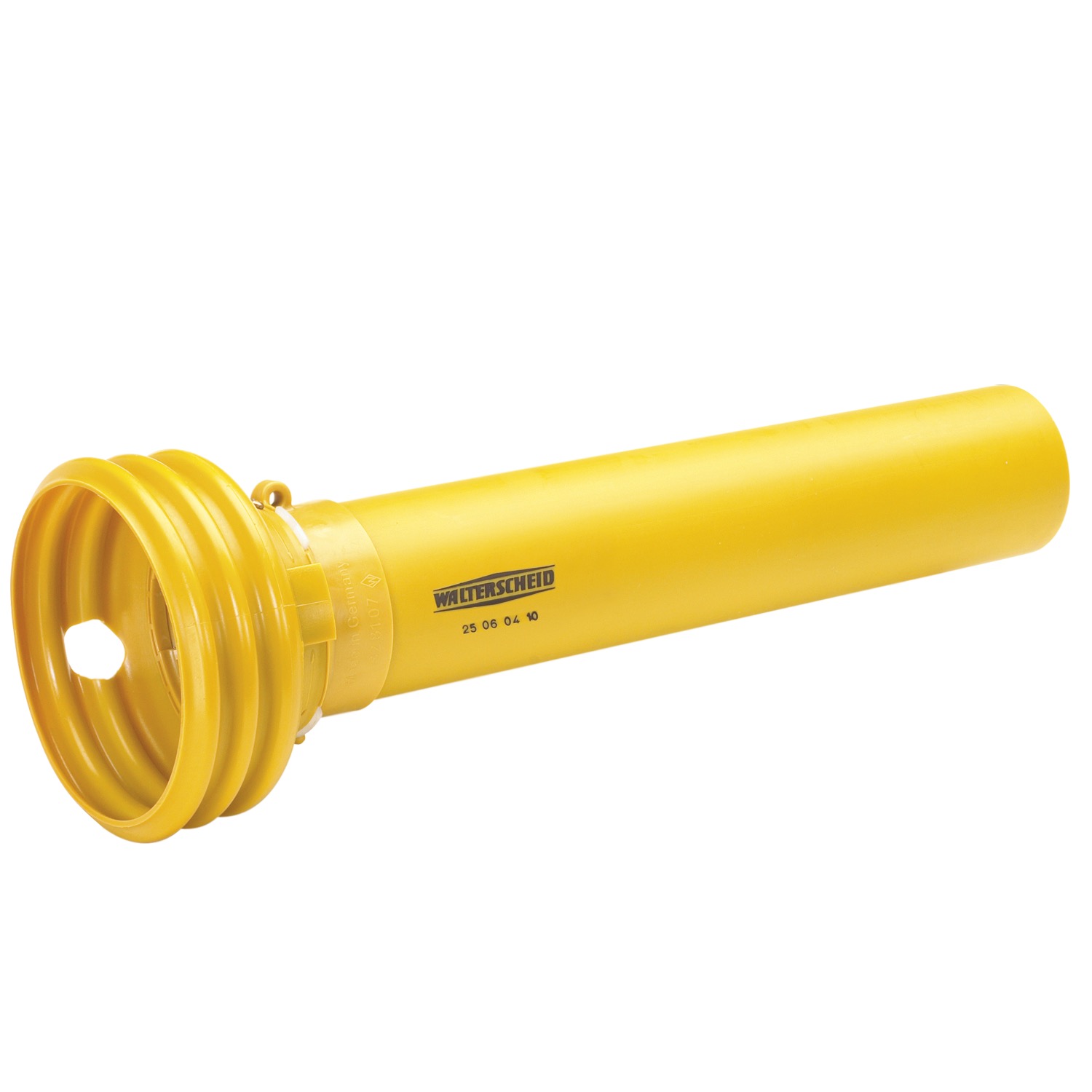

Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability. Cross references, designation of type by vehicle manufacturers or competitors are for guidance only. Check that the part is correct for the application before fitting.

Outer safety guard half for standard wide-angle drive shaft size WWE2580 | WWZ2580

Product advantages

The SD guard complies with worldwide safety regulations and takes into account additional radial loads during test requirements according to ISO 5674 and France Decree 81293. A guard funnel with support ring and retaining chains prevents the guard tubes from spinning. Due to the special arrangement of the guard, the joint is fully protected in all angular positions. Even with large angulations, no contact with the rotating joint occurs.

The scope of delivery includes a complete Walterscheid protective half consisting of 1x protective tube half, 1x protective funnel, 1x sliding ring and 1x screw for protective funnel.
