Walterscheid® Safety guard SDF 15 - 1136736

Product number: 1136736

SDF15 A1000 J1000 851562 851506 KWWE2280/2380***

Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability. Cross references, designation of type by vehicle manufacturers or competitors are for guidance only. Check that the part is correct for the application before fitting.

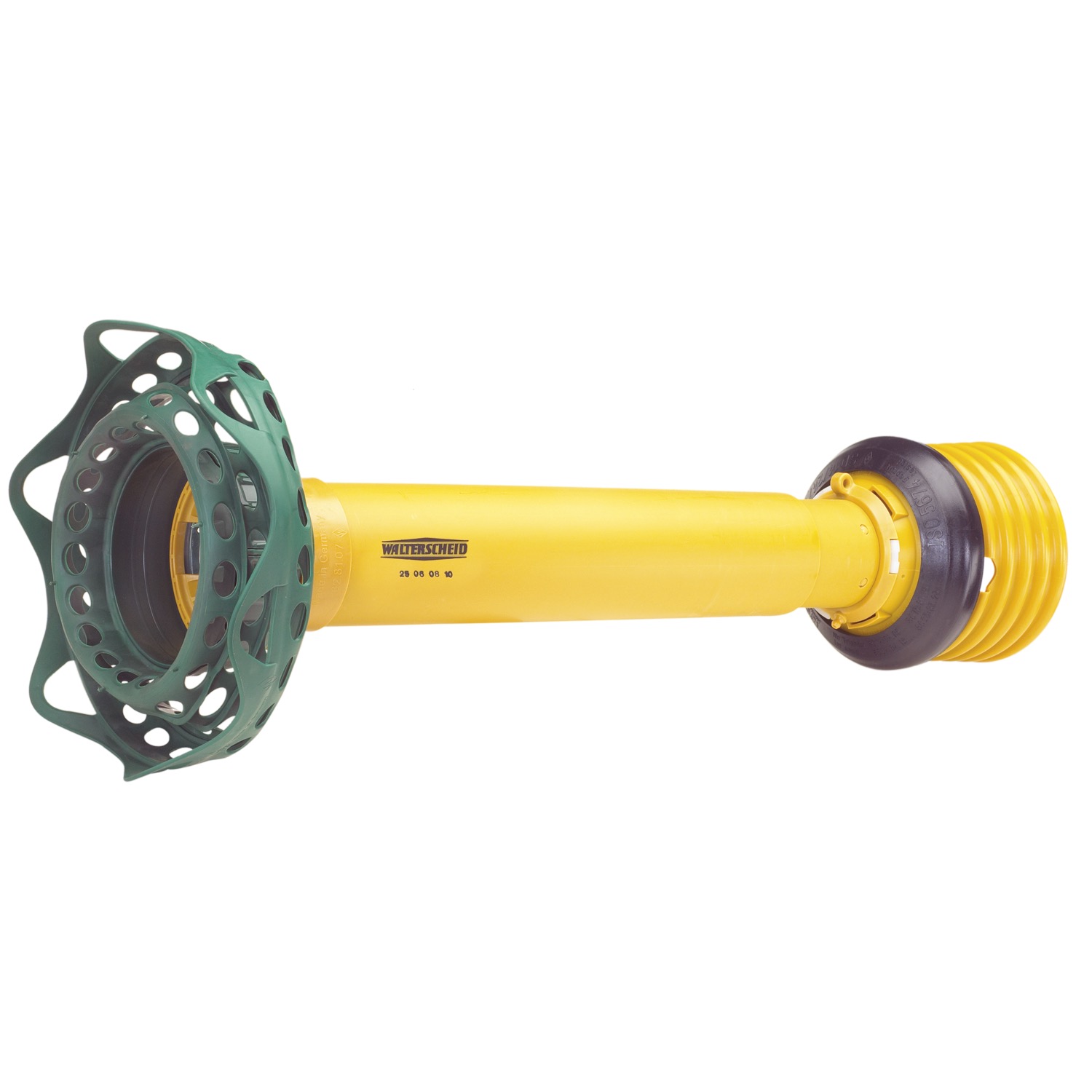

Safety guard with flexoelement for standard drive shaft size WWE2280 | WWE2380

Product advantages

The SD guard complies with worldwide safety regulations and takes into account additional radial loads during test requirements according to ISO 5674 and France Decree 81293. A guard funnel with support ring and retaining chains prevents the guard tubes from spinning.

The scope of delivery includes a complete Walterscheid drive shaft guard consisting of 1x inner guard half and 1x outer guard half.

Type: SDF
Size: 15
Manufacturer: Walterscheid
L (mm): 1000
D (mm): 195
Trichter-SNR-A: 134845
Rohrlänge-Aussen: 1000.00
WW-Typ: WWE
Trichtertyp-I: RP6
Kette-I: K
Protective colour: GELB
KPL/TKPL: KPL
Trichter-SNR-I: 365346
Schutzgröße: 15
Rohrlänge-Innen: 1000.00
Trichtertyp-A: FLEX
Guard type: SDF
