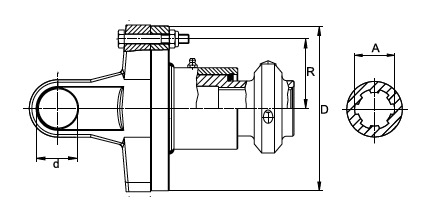

Walterscheid® Shear bolt clutch FKB 61/30R 2600 - 1124711
FKB61/30R 2600 ZNP1 3/4-20 CC MD563 R75M12
Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability. Cross references, designation of type by vehicle manufacturers or competitors are for guidance only. Check that the part is correct for the application before fitting.
Shear bolt clutch with overrunning clutch clamping cone closure.
The shear-bolt clutch is the simplest form of torque-interrupting clutch. If the permissible clutch torque is exceeded, a bolt is sheared off and power transmission thus interrupted. The energy to be transmitted is converted into plastic deformation energy. The transmissible clutch torque is dependent on the effective radius of the cross-sectional area of the bolt, and its shear strength.
Product advantages
Complete interruption of the drive
Repair by replacing the shear bolt
Protects against damage caused by overload and blockages
The shear-bolt clutch is the simplest form of torque-interrupting clutch. If the permissible clutch torque is exceeded, a bolt is sheared off and power transmission thus interrupted. The energy to be transmitted is converted into plastic deformation energy. The transmissible clutch torque is dependent on the effective radius of the cross-sectional area of the bolt, and its shear strength.
Product advantages
Complete interruption of the drive
Repair by replacing the shear bolt
Protects against damage caused by overload and blockages
The scope of delivery includes a complete overrunning clutch FKB61/30R.
- Type
- FKB61/30R
- Size
- 2600
- Torque of clutch in daNm
- 563
- Ø Teilkreis
- 0.00
- Distance from drilling end
- 0
- SNR-Gehäuse
- 124712
- SNR.-Housing/E-Coupl
- 196655
- SNR-Housing/E-Coupl
- 124712
- Torque tolerance class and dimension in %
- STANDARD
- Locking/drilling/thread
- CC
- Connecting PR hub
- ZNP1 3/4-20
- Pitch circle diameter
- 0
- MD-Tol.-Klasse Abw.%
- STANDARD
- Surface/Paint
- LACK.Yellow
- Connection profile hub
- ZNP1 3/4-20
- MD in daNm
- 563.00
- Locking/drilling/thread
- CC

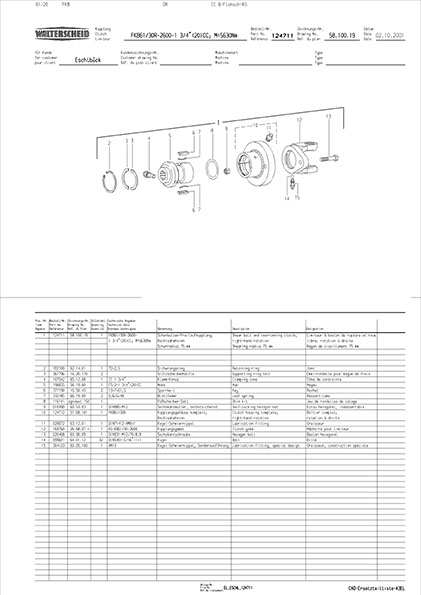

- Drawing
- 58.100.19
