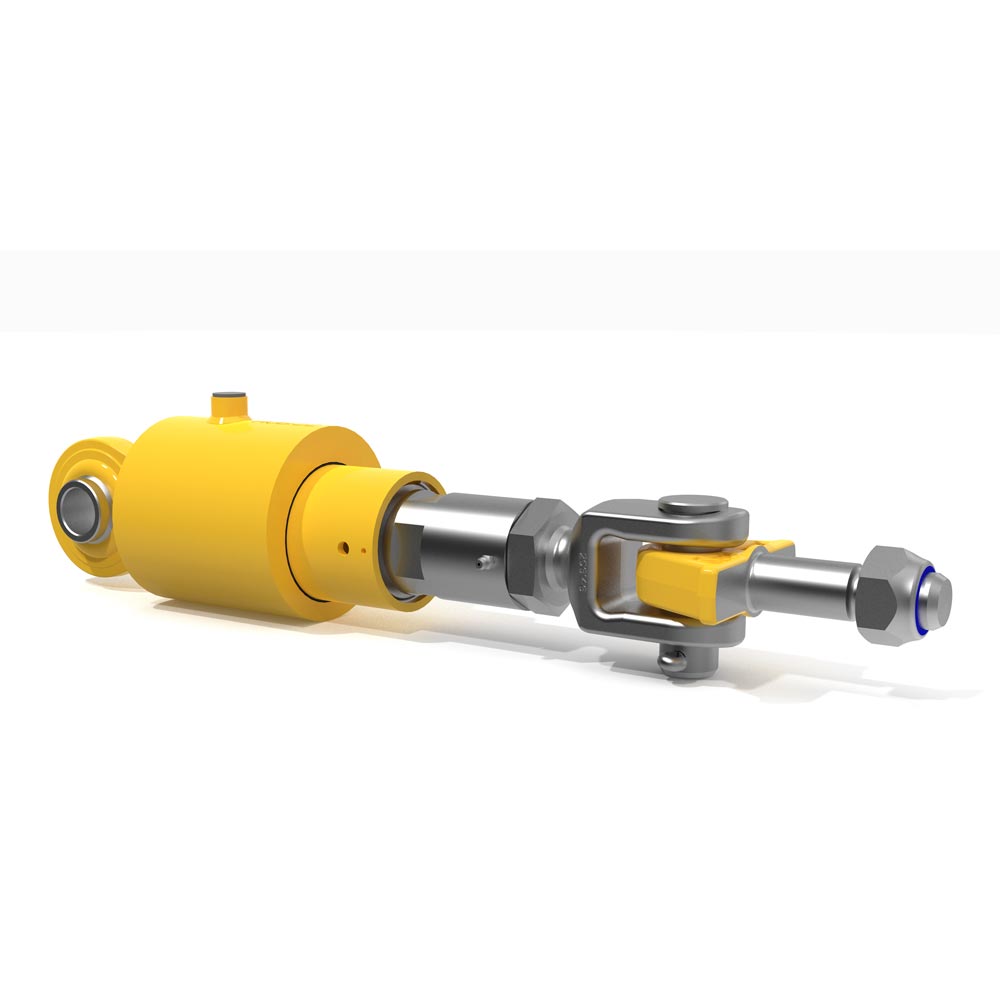

Walterscheid Stabiliser HGST with hydraulic body
Product advantages
Automatic switching between rigid and floating position when raising and lowering the power lift
Permanent rigid or floating position possible at any time
Convenient control from the driver’s seat
Centres actively and stabilises completely smoothly and with absolutely no play
Minimises wear on the three-point linkage and the tyres
Offers maximum safety on slopes and on the road
Simplifies and rationalises work on difficult terrain
Integrated in the tractor’s hydraulic circuit without occupying a control valve

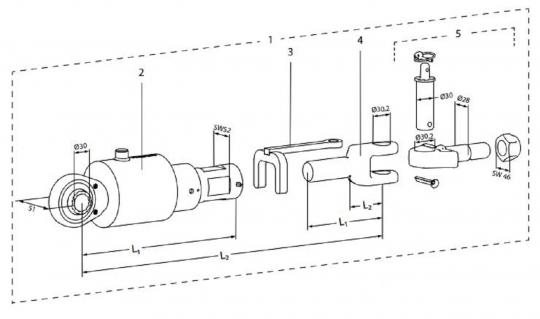

The scope of delivery includes the basic body 1208938, fork rod 1206072, bracket set 1209297, counter nut 1306373.The control set (order number: 1201777) and shuttle valve (order number: 1202997) are not included in the scope of delivery and may have to be purchased separately.
All components are designed specifically for the device and performance and it is not allowed to exchange for components other than those prescribed by Walterscheid. Damaged or missing parts can only replace with original Walterscheid parts and retrofit them in accordance with regulations and after consultation with Walterscheid.
The assignment, assembly and use of this model requires a detailed preliminary examination by qualified personnel. It is imperative to check the existing facilities and all of the machinery and equipment for their suitability for attachment. In particular, the characteristic values (e.g. vertical and pulling loads or torques) and the geometries (e.g. dimensions, screw hole patterns, free spaces) must be observed. Depending on the existing equipment of the machine, this can result in the use or purchase of additional components. The content of operating instructions must be observed.
Note the following when resealing the HGST.

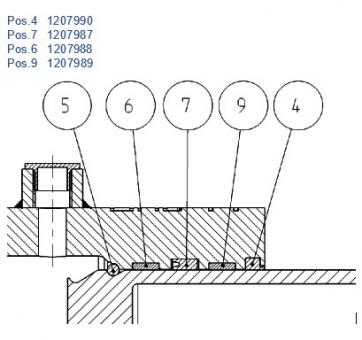

The parts required are the piston rod seal with order number 1207987, slide ring with order numbers 1207988 and 1207989 and the wiper with order number 1207990. see picture 3
In order to remove and install the parts, the plunger cylinder must be removed from the housing.
To do this, the circlip must be removed from the piston through the threaded hole in the hydraulic connection and ‘placed’ in the groove provided (B).
(B) - the cylinder can then be pulled out of the housing and the two sealing rings can be replaced.
After assembly, please refit the snap ring in its original position (A)!
- Manufacturer
- Walterscheid
- L1 (mm)
- 325
- L2 (mm)
- 418
- Hoisting capacity (mm)
- 22
- G
- M36
