Walterscheid® Safety guard half outer STH 15 - 1113637

Product number: 1113637

STH15 A1000 8515116

Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability. Cross references, designation of type by vehicle manufacturers or competitors are for guidance only. Check that the part is correct for the application before fitting.

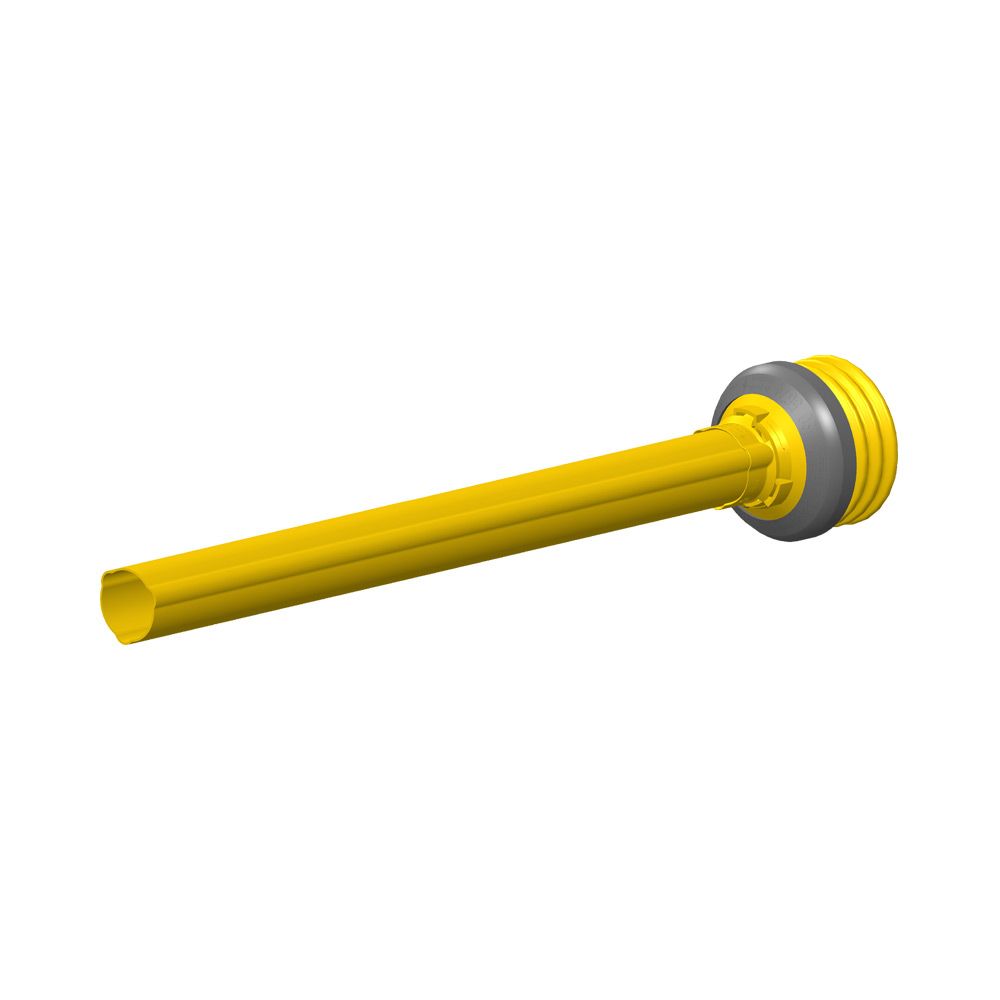

Outer safety guard half for standard drive shaft size W2100 | W2200 | W2300

Product advantages

The advantage of profiled guards is that the two halves of the guard are rotationally fixed. As a result, at least one retaining chain on the PTO drive shaft guard (preferably on the tractor side) is no longer needed. The risk of guard defects due to incorrect chain attachment is reduced. In combination with a full guard on the implement side, it is even possible to dispense with both retaining chains. This is a real plus when it comes to safety, since a defective guard cannot provide adequate protection against the rotating PTO drive shaft.

The scope of delivery includes a complete Walterscheid protective half consisting of 1x protective tube half, 1x protective funnel, 1x SD support ring, 1x sliding ring and 1x screw for protective funnel.

Type: STH
Size: 15
L (mm): 1000
D (mm): 158
n - number of ribs: 6
KPL/TKPL: KPL
Schutzgröße: 15
Trichtertyp: RP6
Rohrlänge: 1000.00
J/A: A
Trichter-SNR: 199871
Protective colour: GELB
Guard type: STH
