Walterscheid® Overrunning clutch DF 5/1 - 1114894
DF5/1 2400 ZNP1 3/8-21NA ZV=D84 63° 4KEILE
Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability. Cross references, designation of type by vehicle manufacturers or competitors are for guidance only. Check that the part is correct for the application before fitting.
Overrunning clutch with pull lock.
Overrunning clutches transmit torques in one direction only. They are often used for reversing operations, in order to prevent loading by rotating masses. As a rule, pivoting, spring-loaded keys engage grooves. The flanks of these grooves are designed in such a way that driving by the locking keys is only possible in one direction. Preferred applications include rotary mowers and flywheel drives, often in the form of a combined friction and overrunning clutch.
Product advantages
Easier coupling when the PTO shaft is braked
Protects against trailing masses
Overrunning clutches transmit torques in one direction only. They are often used for reversing operations, in order to prevent loading by rotating masses. As a rule, pivoting, spring-loaded keys engage grooves. The flanks of these grooves are designed in such a way that driving by the locking keys is only possible in one direction. Preferred applications include rotary mowers and flywheel drives, often in the form of a combined friction and overrunning clutch.
Product advantages
Easier coupling when the PTO shaft is braked
Protects against trailing masses
The scope of delivery includes a complete overrunning clutch DF5/1.
- Size
- 2400
- Type
- DF5/1
- Connecting PR hub
- ZNP1 3/8-21NA
- Model
- UNGESCHLIFFEN
- SNR.-Housing/E-Coupl
- 129238
- SNR-Gehäuse
- 127116
- SNR-Housing/E-Coupl
- 127116
- Distance from drilling end
- 28
- Connection profile hub
- ZNP1 3/8-21NA
- Ø Teilkreis
- 0.00
- Locking/drilling/thread
- ZV-D84
- Länge o.Zentr.
- 156.50
- Length without center
- 156.5
- Pitch circle diameter
- 0
- Surface/Paint
- LACK.Yellow

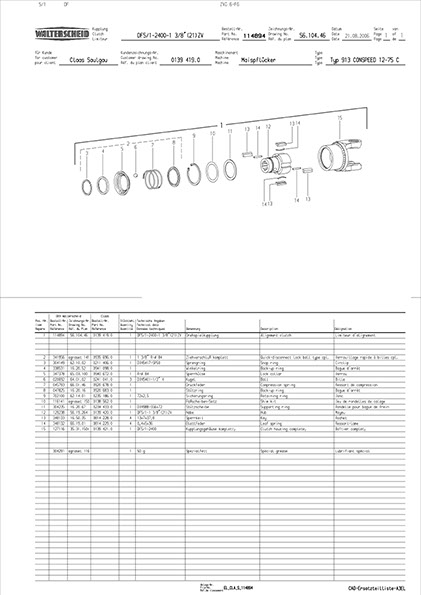

- Drawing
- 56.104.46
