Walterscheid® PTO Driveshaft W 2300 - 1114796
W 2300 SC25 760 F5/1R+K92 100 56248405621916 1BH/2A
Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability. Cross references, designation of type by vehicle manufacturers or competitors are for guidance only. Check that the part is correct for the application before fitting.
Standard drive shaft with connection fork and overload clutches
Product advantages
The W series PTO drive shaft offers tried-and-tested Walterscheid technology and is perfectly designed to suit all application areas. The excellent benefits of this Walterscheid PTO drive shaft is a long service life, ease of use, and great safety properties. For decades, Walterscheid has been a guarantee of the highest quality. The W series are optimally dimensioned for drivetrain tasks, from simple to complex ones. It impresses users with its robust design and high reliability for daily use. Another advantage: All of the components in the PTO drive shaft W series can be replaced really easily to increase ease of use or if spare parts are needed.
Product advantages
The W series PTO drive shaft offers tried-and-tested Walterscheid technology and is perfectly designed to suit all application areas. The excellent benefits of this Walterscheid PTO drive shaft is a long service life, ease of use, and great safety properties. For decades, Walterscheid has been a guarantee of the highest quality. The W series are optimally dimensioned for drivetrain tasks, from simple to complex ones. It impresses users with its robust design and high reliability for daily use. Another advantage: All of the components in the PTO drive shaft W series can be replaced really easily to increase ease of use or if spare parts are needed.

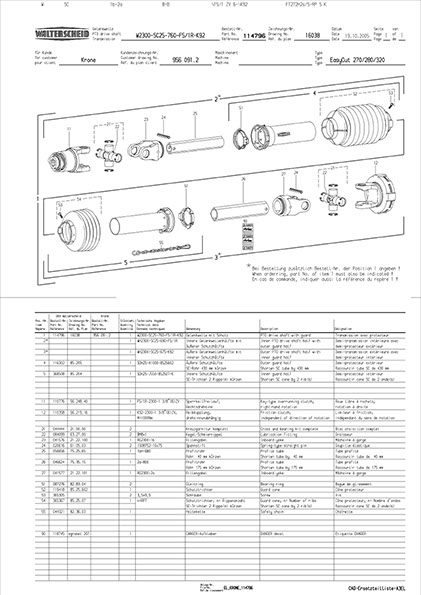

The scope of delivery includes a complete drive shaft size W2300 with connection fork (profile 1 3/8" (6)), friction clutch K92R, overrunning clutch F5/1R, guard, retaining chain(s), operating and assembly instructions incl. declaration of conformity.
- Type
- W
- Size
- 2300
- Shaft length (Lz)
- 760
- Item no. attachment WH-A
- 110358
- Item no. attachment WH-I
- 110776
- Torque of clutch in daNm
- 100
- Rotation speed max. RPM
- 540 UPM
- Form attachment WH-A
- KP1 3/8
- Form attachment WH-I
- KP1 3/8
- Chain WH-A
- K
- Nipple shape/position
- LB LB
- Protective colour
- Yellow
- PR-I
- 1BH
- SNR Anschl.-WH-I
- 110776
- Schutzrohrlänge-I
- 560.00
- PR-Bef.
- AA
- SNR Anschl.-WH-A
- 110358
- Form Anschl.-WH-A
- KP1 3/8
- Form Anschl.-WH-I
- KP1 3/8
- Inner profile length
- 640
- Cone Type WH-A
- RP5
- MD in daNm
- 100.00
- PR-Länge-I
- 640.00
- W-Länge
- 760.00
- Length of guard tube (inner)
- 560
- Kuppl./Freilauf
- F5/1R+K92
- SNR cone WH-A
- 153044
- Nipple form / position I/A
- LB LB
- Outer profile length
- 625
- PR-A
- 2A
- Cone type WH-I
- VT FT
- Drehzahl max.
- 540 UPM
- SNR cone WH-I
- 119418
- Attachment type of profile
- AA
- Schutzrohrlänge-A
- 570.00
- KZ Anschl.-WH-I
- F-ZV
- PR-Länge-A
- 625.00
- KZ Anschl.-WH-A
- K-ZV
- Length of guard tube (outer)
- 570
- Cross seal
- STANDARD
- Clutch / One-way type
- F5/1R+K92
- Abbreviation attachment WH-A
- K-ZV
- Abbreviation attachment WH-I
- F-ZV
- Profile tube - outer type
- 2A
- Profile tube - inner type
- 1BH
- Guard type
- SC25
