Walterscheid® PowerDrive PTO Driveshaft with wide angle joint on both sides PWZ 480 - 1113536

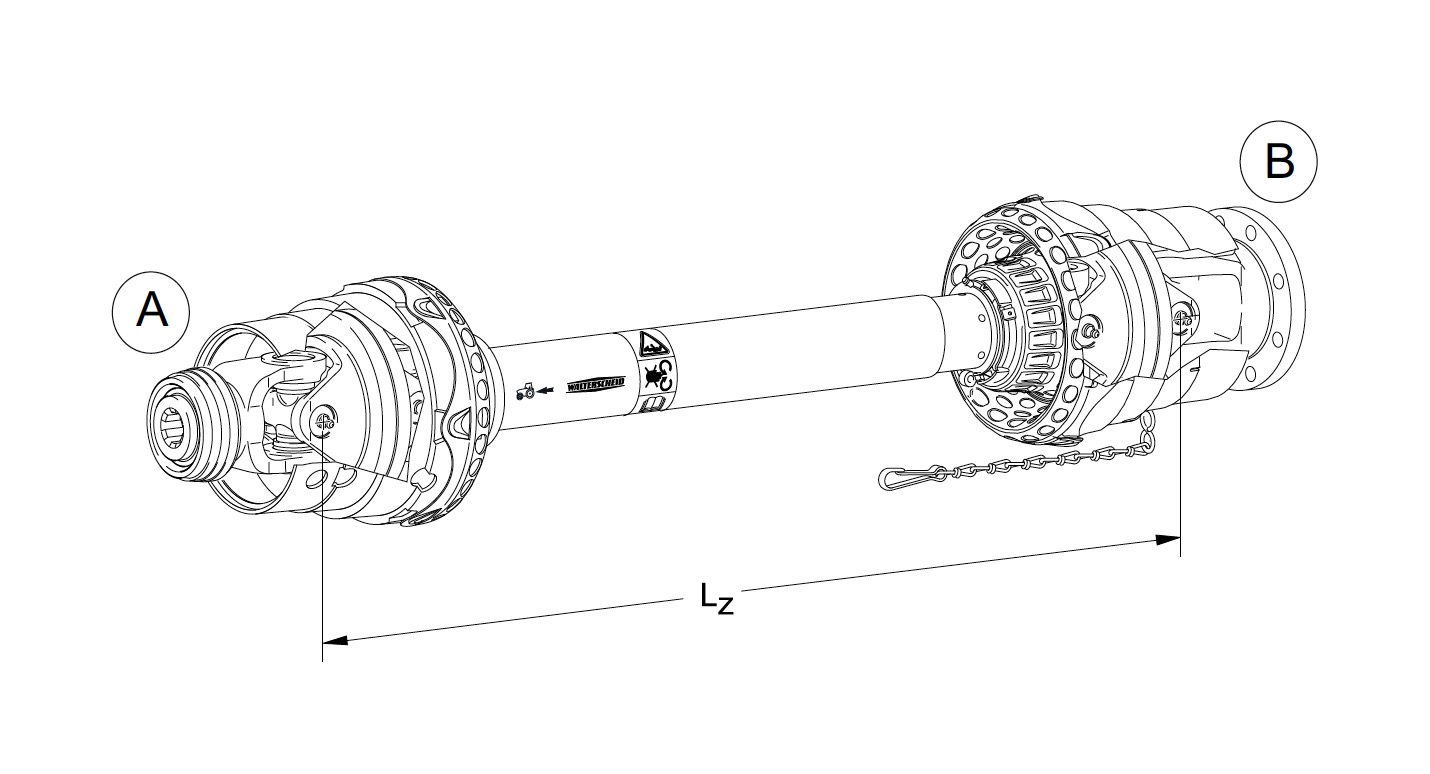

PowerDrive drive shaft with connecting forks and wide-angle joint on both sides

Product advantages

PowerDrive universal drive shafts are specially designed for machines in continuous use and meet the highest requirements. Maintenance is usually carried out only once per season (every 250 hours - depending on application use). These long maintenance intervals are achieved through a number of technologies: The material of the protective bearings requires only minimal lubrication. The joints are equipped with special universal joint seals (multi-lip technology), whose shape and material prevent grease leakage or dust penetration. The profile tubes are optionally equipped with a grease nipple. These tubes are made of specially treated material that reduces sliding forces and minimizes wear on the profile tubes. Profile tube seals wipe off dirt and prevent grease loss. For easy handling of the PowerDrive drive shaft, the guard funnels can be easily unlocked and pushed back. The resulting free space makes it much easier to couple and uncouple the drive shafts and to maintain the joints and protective bearings. All PowerDrive joints are also equipped with bush bottom lubrication. Profiled, thick-walled protective tubes prevent the two protective halves from twisting relative to each other. The retaining chain on the tractor side therefore becomes superfluous. The risk of defects in the guard due to incorrect chain attachment is reduced. With the full guard version, supporting chains can be dispensed with altogether.
