Walterscheid® Rotary clearance clutch IFM/R 2400 - 1139005

Walterscheid® Rotary clearance clutch IFM/R 2400 - 1139005

Product number: 1139005

IFM/R 2400 S5 SC25 SPB10 L129,5 60°

Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability. Cross references, designation of type by vehicle manufacturers or competitors are for guidance only. Check that the part is correct for the application before fitting.

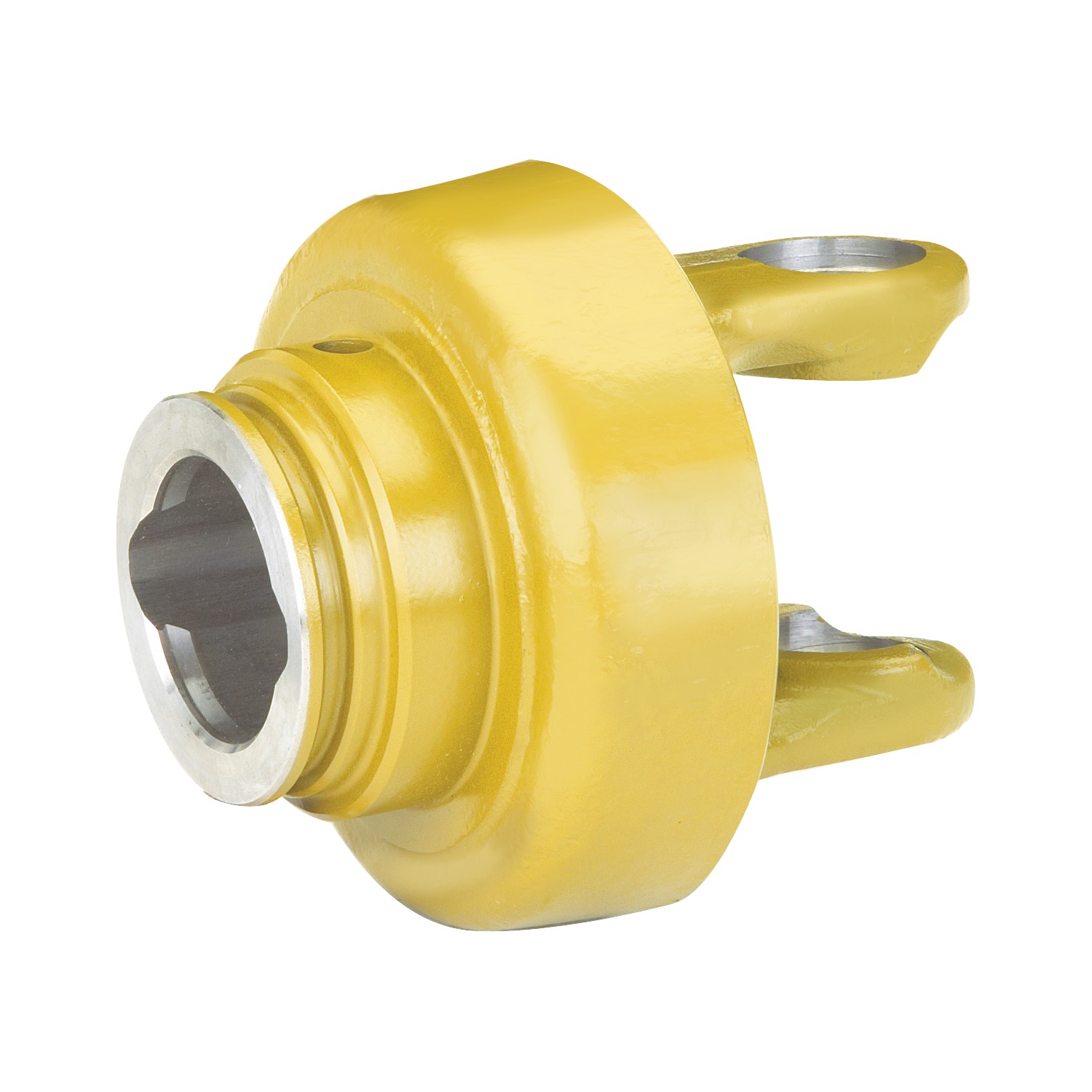

Rotary clearance clutch with roll pin locking

The scope of delivery includes a complete rotary clearance clutch IFM/R.

Type: IFM/R
Size: 2400
Connecting PR hub: S5
Pitch circle diameter: 0
Length without center: 129.5
Locking/drilling/thread: SPB10
Running groove for protection: SC25
Surface/Paint: LACK.Yellow
Distance from drilling end: 32
Model: UNGESCHLIFFEN
SNR-Housing/E-Coupl: 137857
Länge o.Zentr.: 129.50
SNR-Gehäuse: 137857
Connection profile hub: S5
SNR.-Housing/E-Coupl: 139003
Ø Teilkreis: 0.00

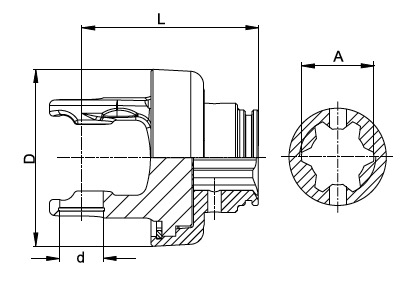

Drawing: 56.105.45

The listing of this OEM article is for the purpose of identification only. It is not intended as a spare part until further notice!
